Clock Three

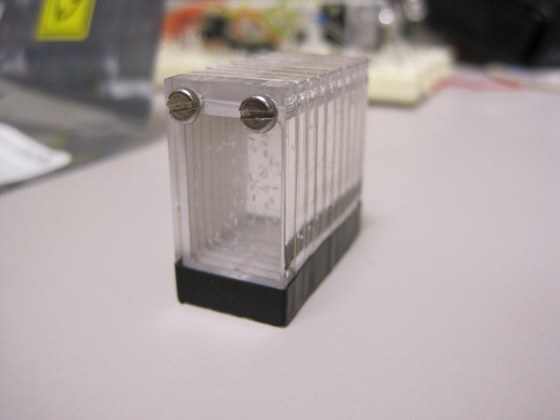

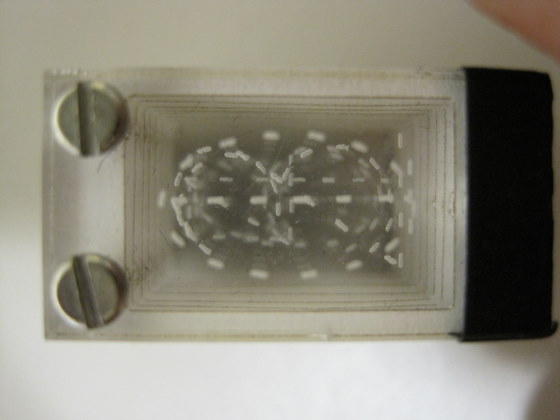

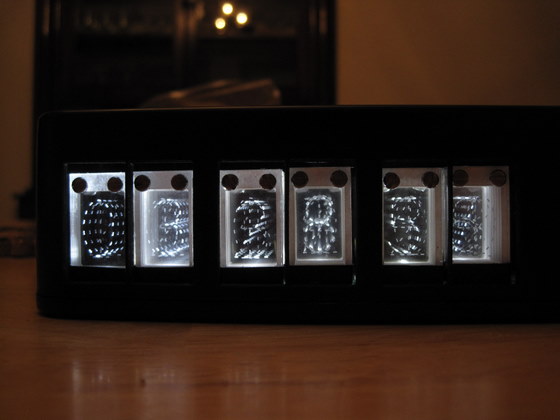

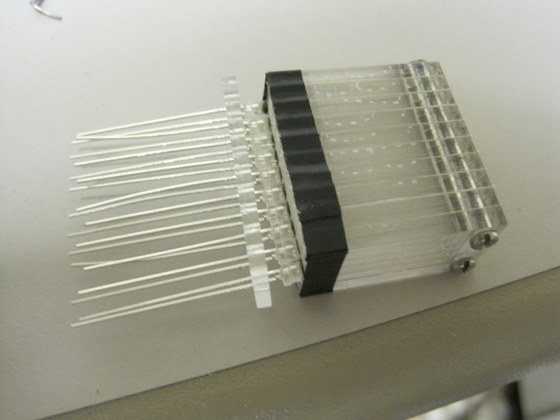

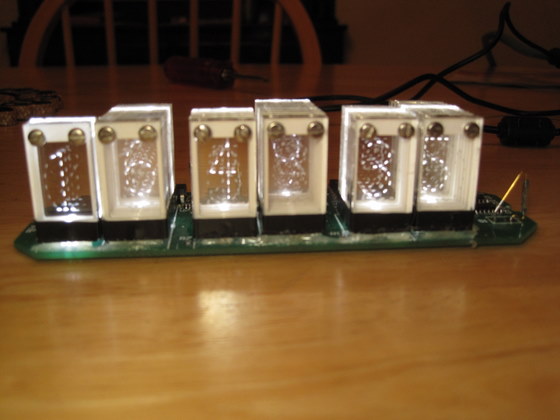

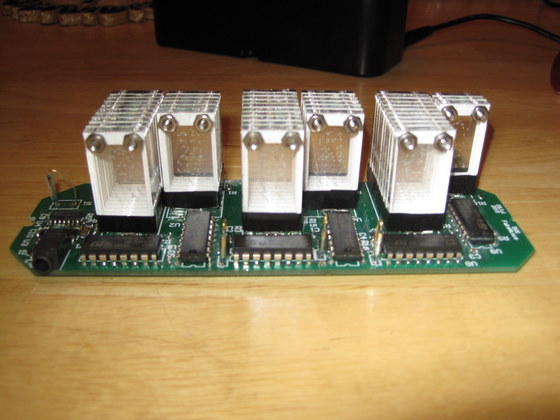

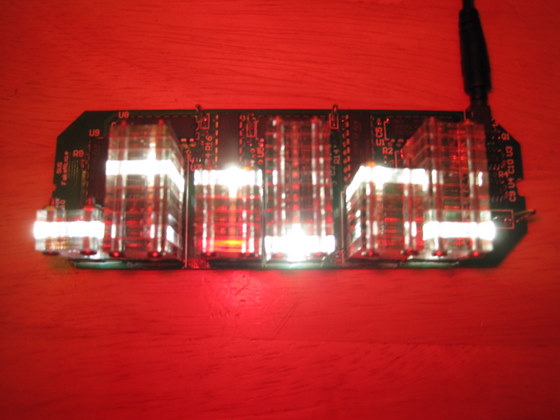

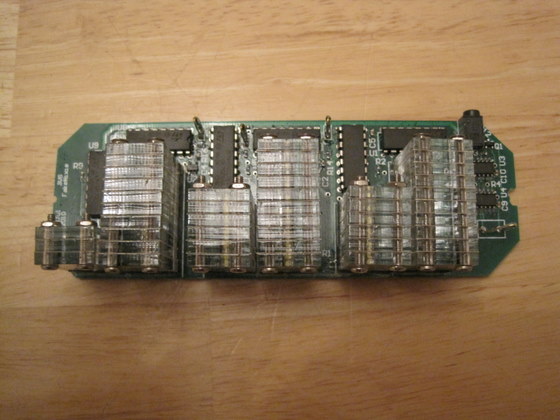

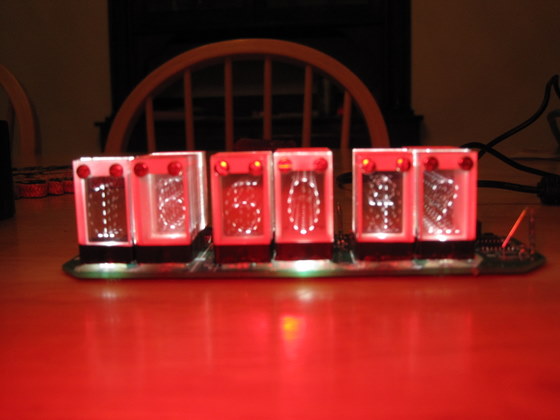

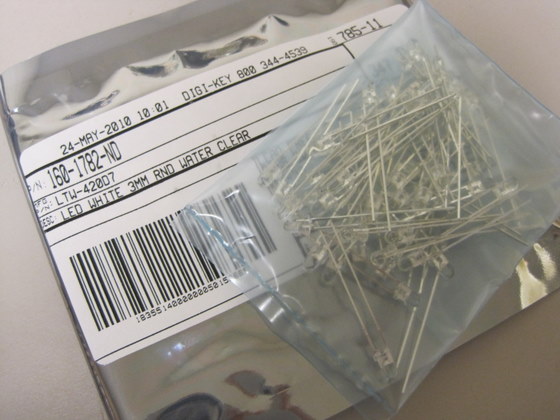

This is a 74xx logic-based clock, built to test out a display idea. The digits are made of rows of LEDs, each of which edge-lights a numeral which has been etched onto a 3mm-thick piece of acrylic. Setting the clock is accomplished by actuating reed switches hidden in the case with a magnet.

25/58

Next project: → Modular Matrix

Previous project: ← MBTA Map


PDFS

Clock Three schematic orig

Clock Three schematic
