OSUR Hardware

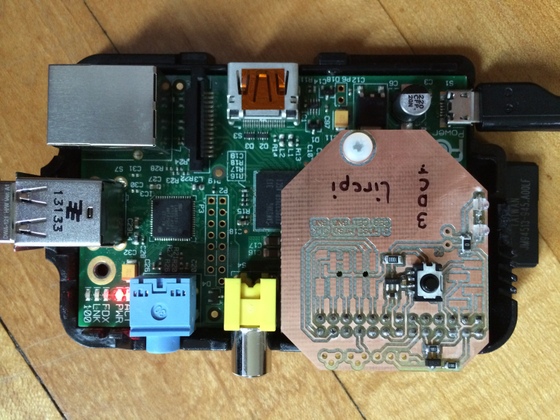

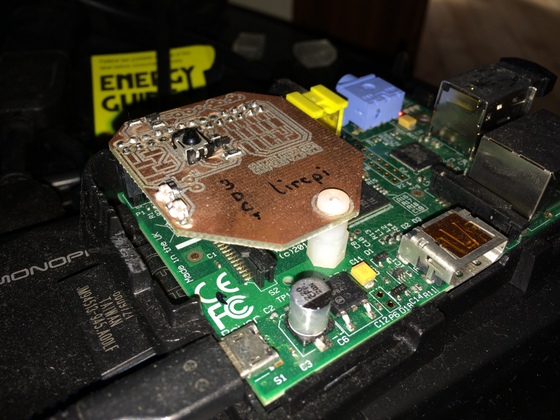

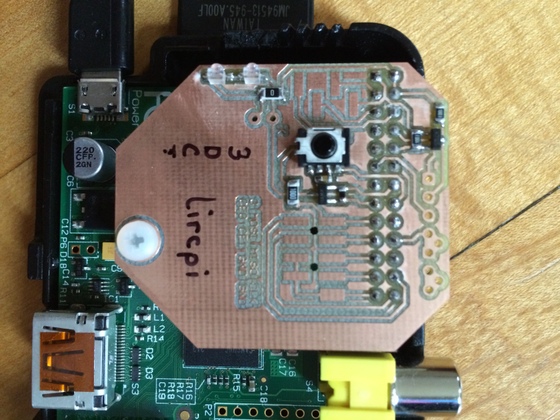

I stumbled upon Alex Bain's excellent Open Source Universal Remote project while looking for a solution to manage and sequence the myriad IR devices in the living room. His software uses a Raspberry Pi running lirc and packages it with an attractive web-based front end. I designed a small PCB with IR receiver and emitters to sit atop my Raspberry Pi, which lives in the entertainment center and can drive the cable box, TV, AC, Roomba, and other devices within line of sight. The gerbers, below, also have pads to pick up SPI and I2C, in case I feel like adding any other sensors.

9/58

Next project: → Pipe Pipes

Previous project: ← Clock Six


Gerbers

Pi lirc bottom copper

Pi lirc nc drill

Pi lirc outline

Pi lirc top copper
